Architecture

wis2-gdc is implemented in the spirit of the Twelve-Factor App methodology.

wis2-gdc is a Docker and Python-based platform in support of WIS2 metadata management, publication, and discovery.

High level system context

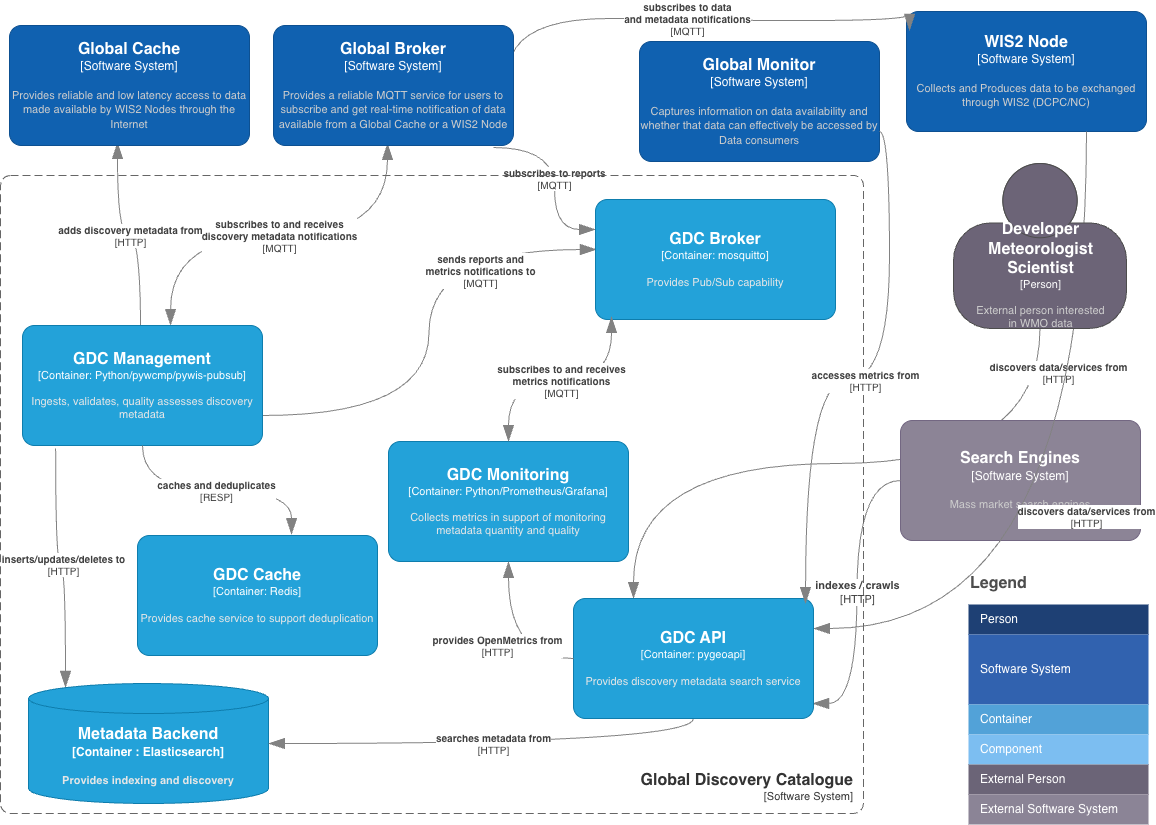

The following diagram provides a high level overview of the main functions of wis2-gdc:

wis2-gdc architecture

How wis2-gdc works

As a containerized solution, wis2-gdc provides functionality via the following services:

  • wis2-gdc-management: ingests, validates and publishes discovery metadata published from a WIS2 Global Broker instance

  • wis2-gdc-api: API powered by pygeoapi

  • wis2-gdc-monitoring: monitoring

    • metrics-collector: metrics collector

    • prometheus: metrics scraper

    • grafana: analytics and visualization

  • wis2-gdc-broker: MQTT broker

  • wis2-gdc-backend: API search engine backend (default Elasticsearch)

  • wis2-gdc-cache: message cache (default Redis)

wis2-gdc is primarily an event-driven system, also providing interactive functionality for managing WIS2 metadata if required.

Workflows

wis2-gdc starts up by connecting to one or more WIS2 Global Brokers (GB), subscribing to notifications for WIS2 metadata (WMO Core Metadata Profile [WCMP2]). On receipt of WIS2 Notification Messages (WNM) for metadata, wis2-gdc will perform message deduplication, validate, ingest and publish a WCMP2 record to its catalogue API. In addition, WCMP2 update and deletion is supported with the appropriate WNM.

The wis2-gdc monitoring capability collects and provides metrics on WCMP2 that is scraped by the WIS2 Global Monitor (GM).

wis2-gdc also provides its own MQTT broker that provides WCMP2 compliance and key performance indicator (KPI) reports. The WIS2 GB subscribes to the wis2-gdc broker in order to publish these reports back to users (available on WIS2 topic monitor/a/wis2/CENTRE_ID_OF_DATA_PUBLISHER> for data providers in support of quality assessment, scoring and corrective action. The wis2-gdc broker also acts as an internal message bus for inter-application event handling.

The wis2-gdc API provides an OGC API - Records endpoint that is OGC compliant. The API provides search engine capability for WIS2 metadata, also providing OGC API - Processes functionality for WCMP2 validation and KPI quality assessment.

The wis2-gdc-management container provides functionality to restore a WCMP2 metadata archive zipfile from another GDC. Note that ETS and KPI validations are not performed during a restore workflow.
