Services

API

The WIS2 GDC provides a search API according to the GDC technical considerations in the WIS2 Guide, supporting the OGC API - Records standard.

Overview

The wis2-gdc OGC API - Records API is powered by pygeoapi, an OGC API Reference Implementation, and contains the following resources:

GDC API main endpoints
Resource type	Endpoint
OpenAPI/Swagger API description	`/openapi`
WCMP2 records	`/collections/wis2-discovery-metadata`
WCMP2 validation	`/processes/pywcmp-wis2-wcmp2-ets/execution`
WCMP2 quality assessment	`/processes/pywcmp-wis2-wcmp2-kpi/execution`

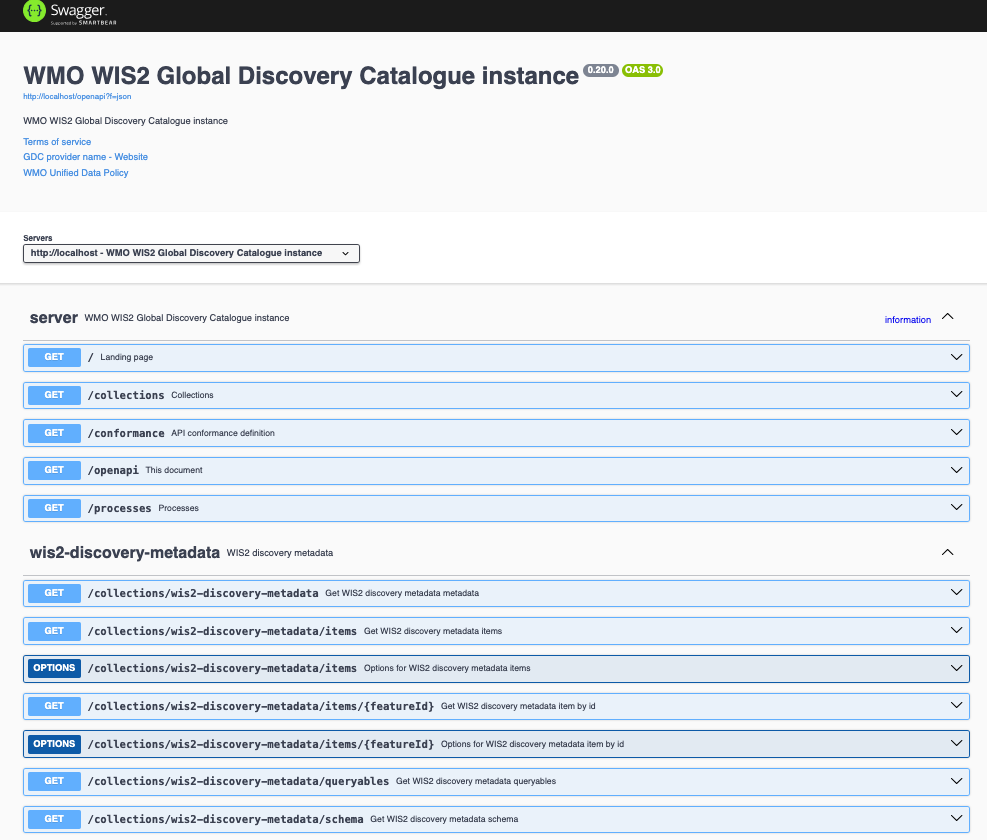

OpenAPI/Swagger

The easiest way to test the GDC API is using the Swagger endpoint, which allows for testing various capabilities and queries into the GDC.

Discovery

The GDC API allows for a wide range of query predicates to search for data in WIS2 as per the OGC API - Records - Part 1: Core specification.

The GDC can be searched via the /collections/wis2-discovery-metadata/items endpoint. This endpoint provides a number query parameters as described in the examples below.

NOTE: examples below are not URL encoded for clarity / readability, but should be when interacting with the GDC API.

Spatial queries

search for metadata records of data in Canada: bbox=-142,42,-52,84

Note that the format of bbox is comma-separated values in the following order:

minimum longitude
minimum latitude
maximum longitude
maximum latitude

Temporal queries

search for metadata records updated since 29 July 2024: datetime=2024-07-29/..
search for metadata records updated before 29 July 2024: datetime=../2024-07-29
search for metadata records updated on 29 July 2024: datetime=2024-07-29

Equality queries

search for metadata records whose title contains the terms hourly observations: title=hourly observations
search for metadata records whose title contains the terms hourly or observations: title=hourly | observations
search for metadata records for a specific contact organization contacts.addresses.organization=Direction Generale de la Météorologie

Freetext search

search metadata records for temperature: q=temperature`
search metadata records for GRIB2 data: q=GRIB2
search metadata records for any GRIB data: q=\*GRIB*
search metadata records for any GRIB data in Germany: q=*GRIB* AND germany
search for either GRIB data or data in Europe with subscriptions to the Météo-France Global Broker: q=(\*GRIB* OR \*Europe*) AND \*globalbroker*
search for data from Belize with MQTT subscription capabilities: q="cache/a/wis2/bz-nms"

Sorting

sort search results by title, ascending: sortby=title
sort search results by title, descending: sortby=-title

Paging

present search results 1-10: limit=10
present search results 11-20: limit=10&offset=10
limit to 3 search results: limit=3

Finding data subscription services

The GDC API contains both real-time and non real-time data. A typical WCMP2 distribution link for data subscriptions can be found below:

{
  "rel": "items",
  "href": "mqtts://everyone:everyone@globalbroker.meteo.fr:8883",
  "channel": "origin/a/wis2/ca-eccc-msc/data/core/hydrology",
  "type": "application/geo+json",
  "title": "Data notifications"
}

Note

The channel property represents WIS2 topic which can be used to subscribe to the href property (i.e. the MQTT address) of the Global Broker (GB).

Programmatically, a GDC client can query the catalogue and filter the results for real-time subscriptions in the following manner:

import requests

response = requests.get('https://wis2-gdc.weather.gc.ca/collections/wis2-discovery-metadata/items').json()

def is_wis2_subscription_link(link) -> bool:
    if (link['href'].startswith('mqtt') and
            link.get('channel', '').startswith(('origin/a/wis2', 'cache/a/wis2'))):
        return True

for feature in response['features']:
    for link in feature['links']:
        if is_wis2_subscription_link(link):
            print('WIS2 subscription link')

Using the href and channel properties of a matching link object, a client can connect and subscribe to data notifications for a given dataset.

Validation and quality assessment

The GDC API provides processes to validate WCMP2 records (required by WIS2) and perform quality assessment as a value added service. Both processes utilize the pywcmp package to achieve this capability.

The Swagger interface will provide a sample WCMP2 record as part of the JSON request payload example. To validate a specific WCMP2, copy/paste the WCMP2 record, replacing the contents of the record property in the example request payload. If the WCMP2 record is a link, provide the link instead, as the value of the record property.

Interfaces for both ETS validation and KPI quality assessment take the same inputs and provide similar output reports.

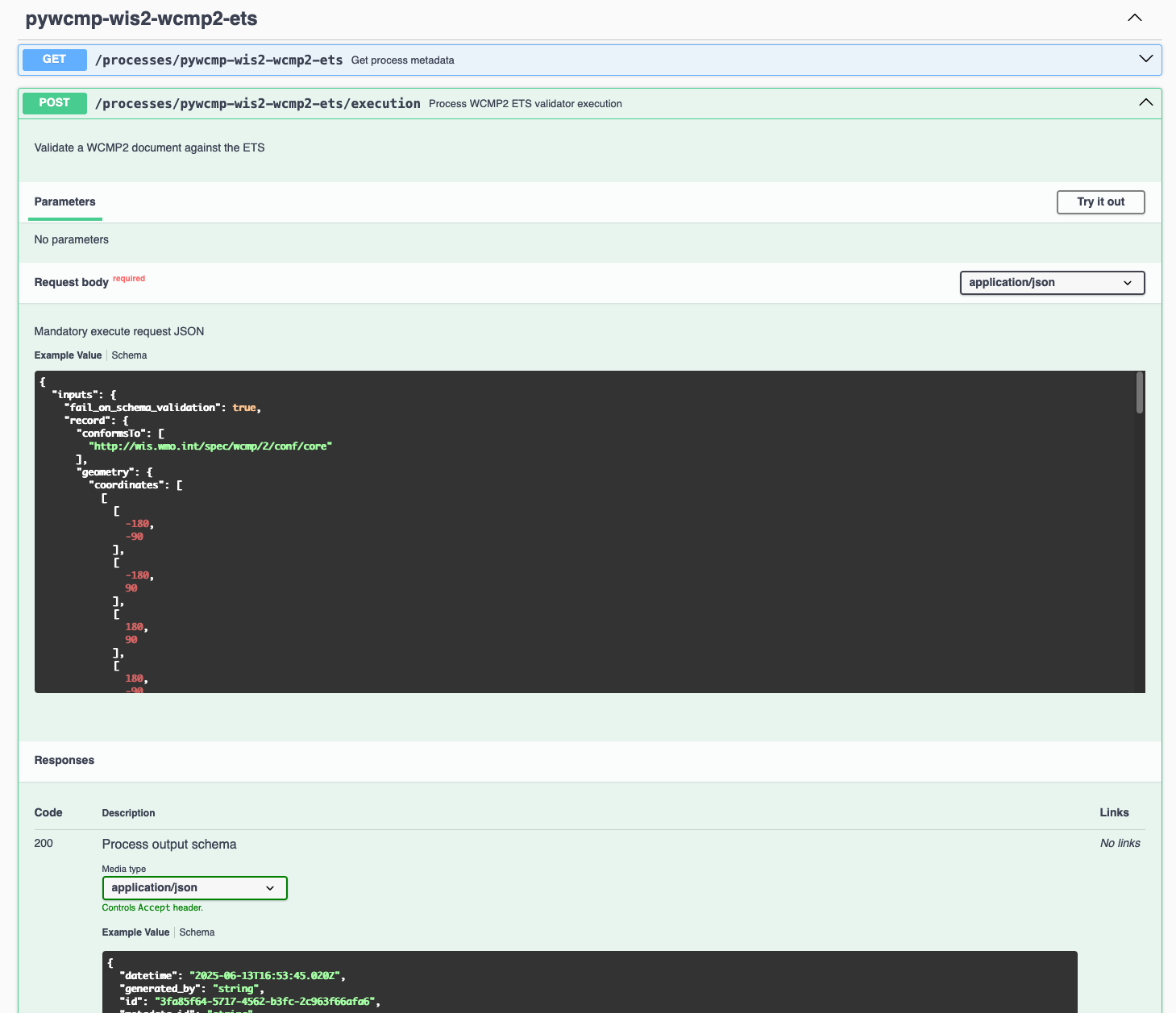

GDC API Swagger Process for WCMP2 validation

Additional endpoints

In addition to OGC API interfaces, wis2-gdc provides the following additional endpoints:

/wis2-discovery-metadata-archive.zip: Metadata archive (generated daily)
/wis2-gdc-metrics.txt: OpenMetrics
/wis2-gdc-all-channels-latest.txt: Live channel list

Metrics

wis2-gdc generates metrics on a daily basis (at 1h) as per the WIS2 Guide Technical Considerations for GDC. The reuslting metrics are made available at /wis2-gdc-metrics.txt and made available as per the OpenMetrics standard.
